Description

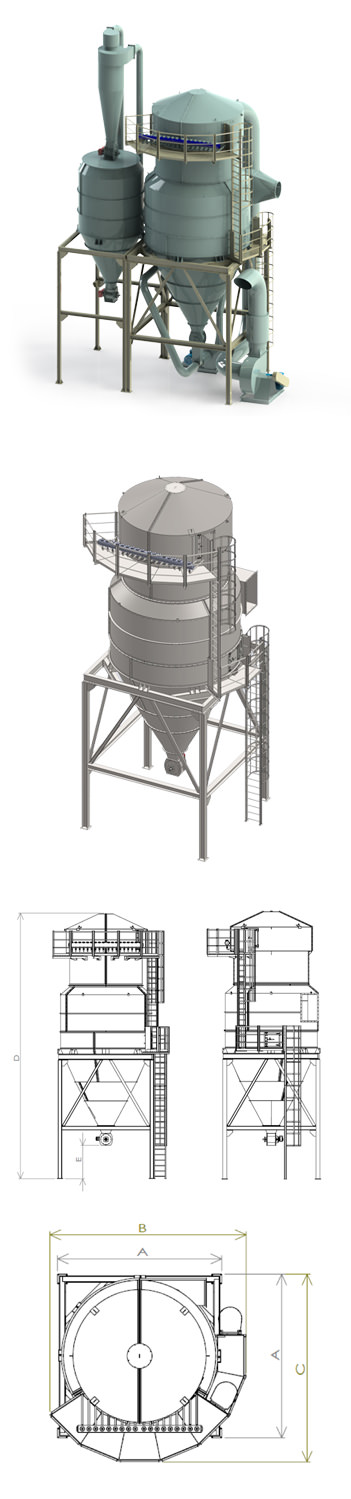

Cyclonic bag filter are used to extract dust from processes and separate the dust from the air stream.
Whilst mainly used for processes that produce large quantities of dust in woodworking and rice mills industries, they may be used in many other indus- tries where dust emitting processes are used.
Effective extraction of dust and chips produced by machine tool improves its production capacity.
Whilst mainly used for processes that produce large quantities of dust in woodworking and rice mills industries, they may be used in many other indus- tries where dust emitting processes are used.
Effective extraction of dust and chips produced by machine tool improves its production capacity.
Technical Parameters:
- Maximum working temperature 75 C
- Maximum suction pressure 5000 Pa
- Inspection door on filter body
- Filter bags: BWF (Germany) antistatic polyester nee- dle felt coating with non-stick surface Oleophobic (oil resistant)
- Cleaning control system: Autel (Italy)
- Compressed air cleaning system: 6 Bar, Pressure reg- ulator included)
Advantages
Cyclonic bag filter has been designed especially to improve the flow of air and separation of dust within the body ensur- ing a low, stable differential pressure.
- More effective centrifu- gal pre-separation ensures high efficiency filtration even for dust loads above 300 g/m3
- Two state separation minimizes upward air velocity and final dust load protecting filter bags dust load protect- ing filter bags to ensure secure operation and extended bag life
- Filtration with an very low dust content under 0.5 mg/m3, in the ex- haust air
- Designed to handle very large volumes of dust

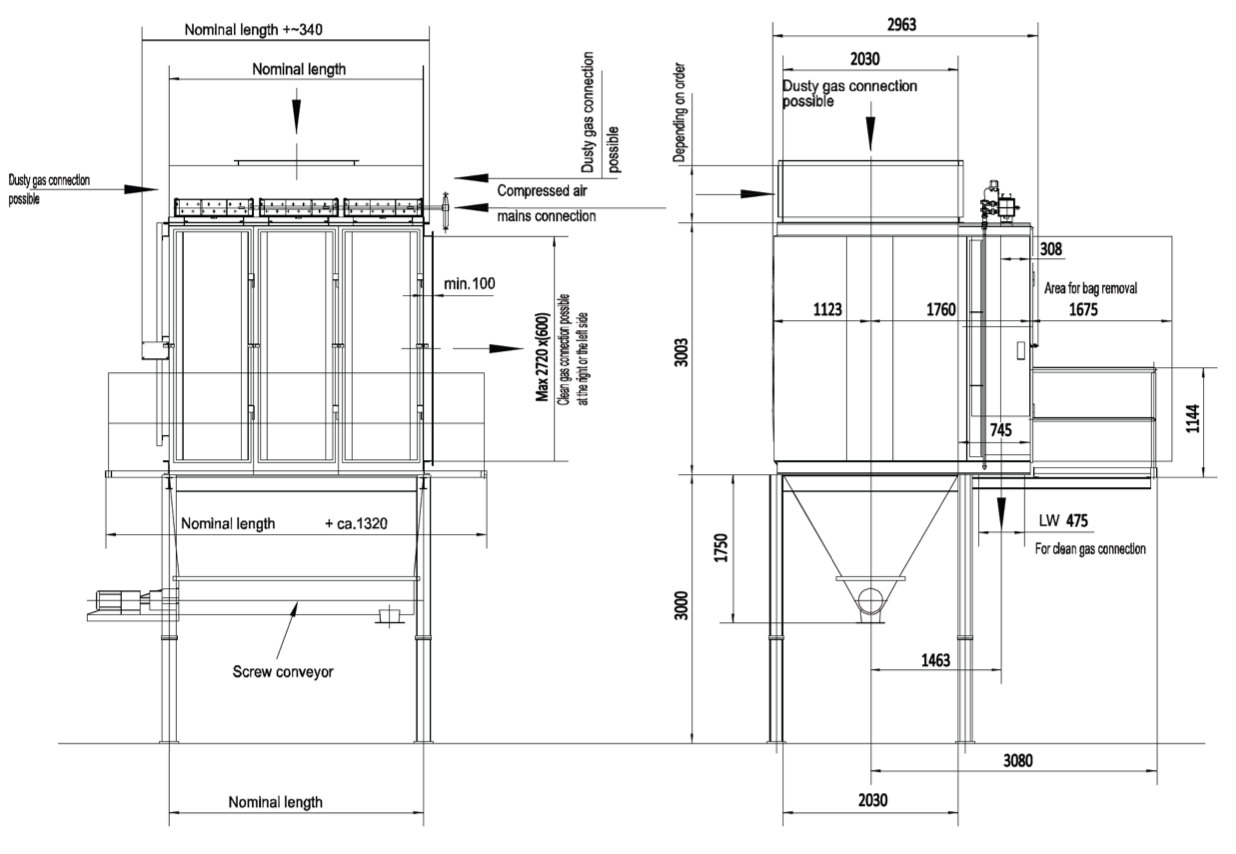

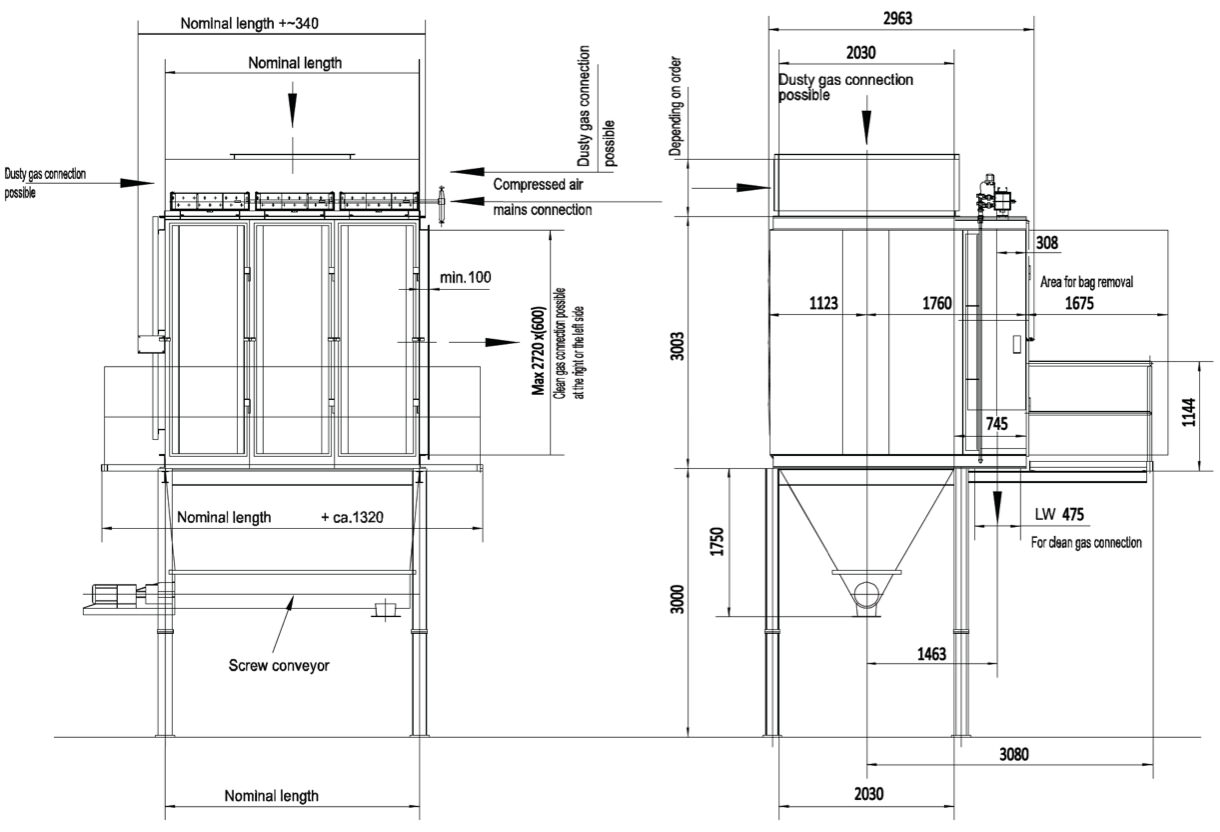

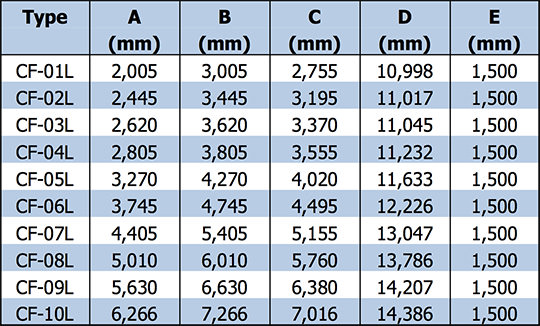

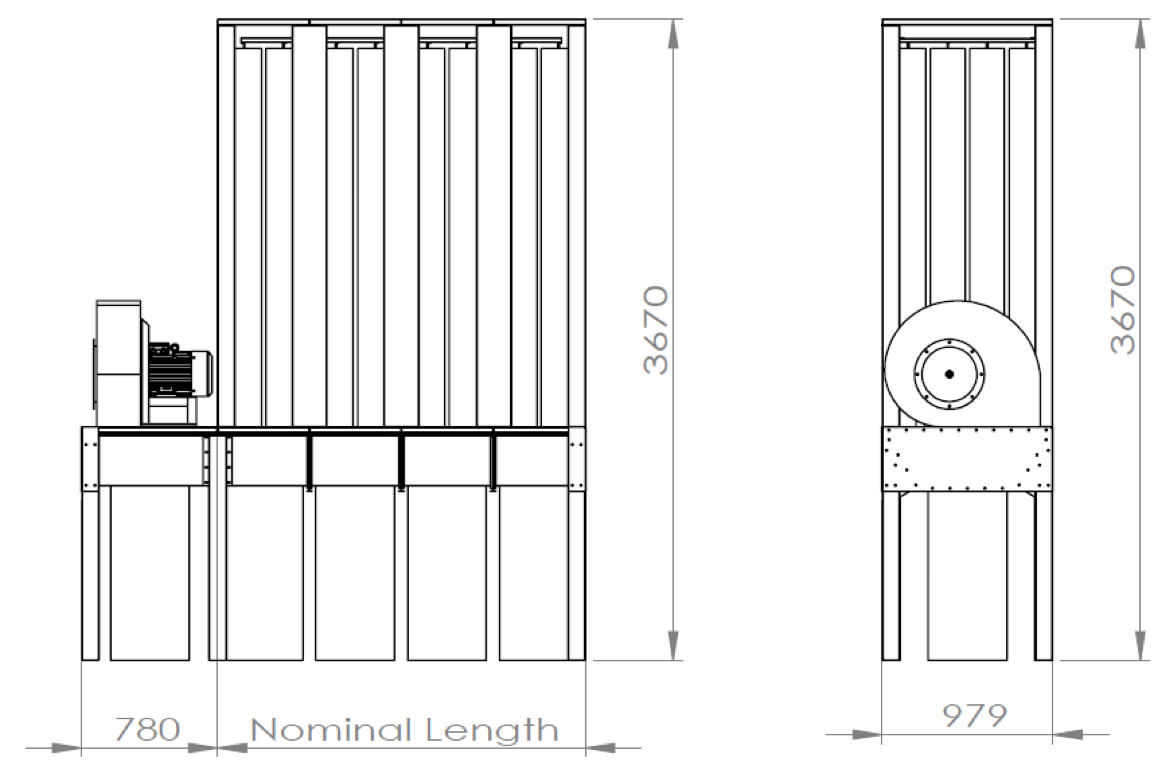

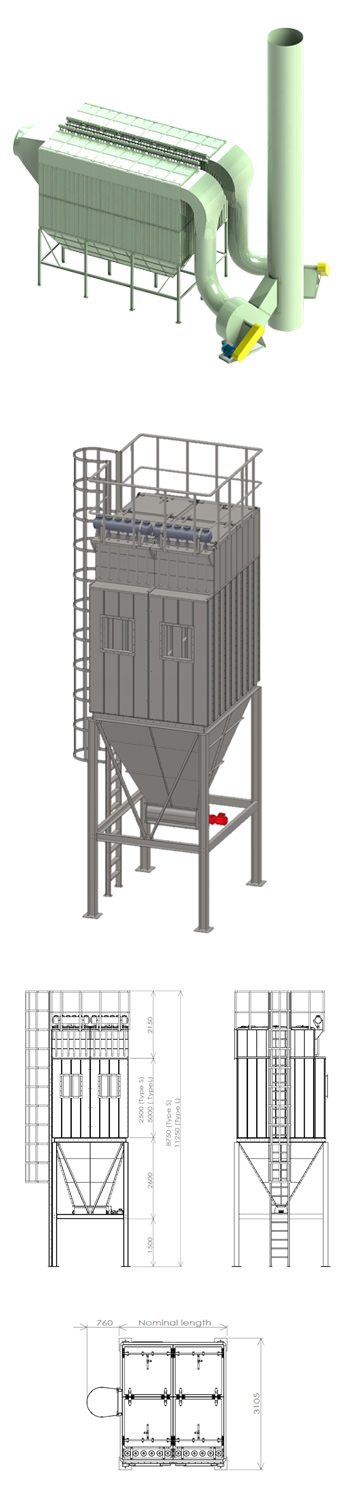

Dimensions

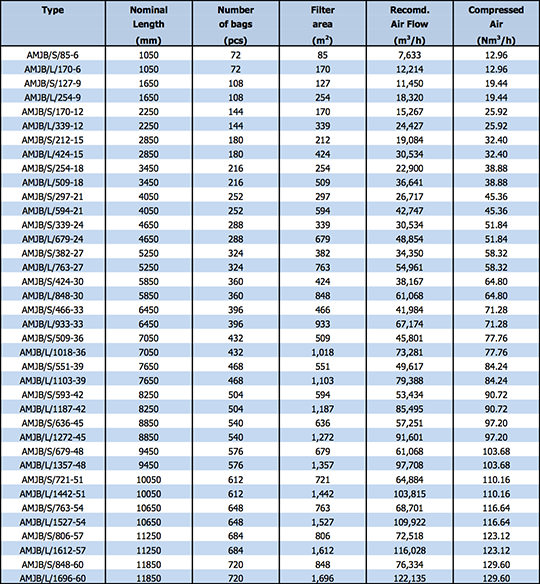

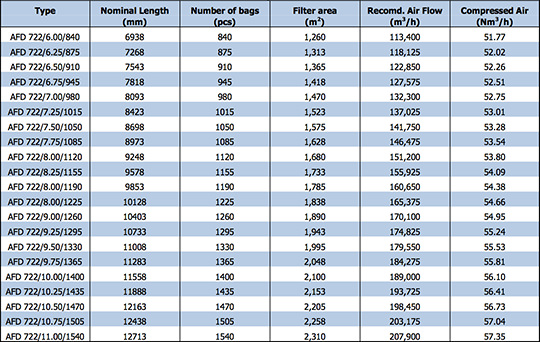

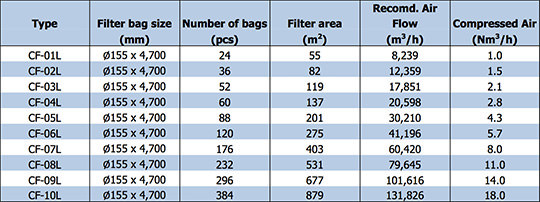

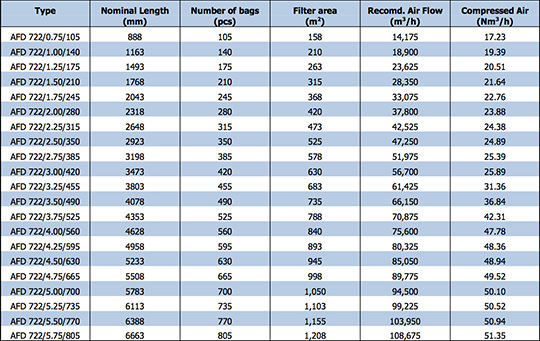

Technical Parameters
